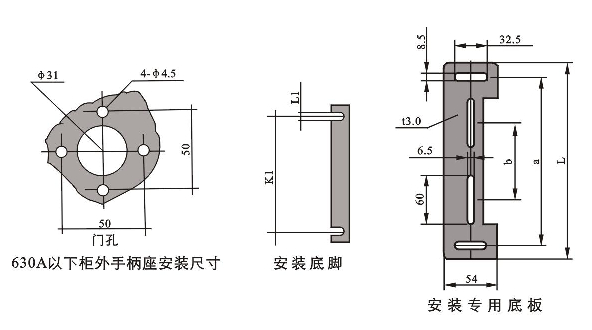

630A以下安装专用底板
| 规格 | 底板尺寸 | ||
| L | a | b | |
| MRGL-125~160 | 218 | 190 | 85 |
| MRGL-200~250 | 245 | 220 | 110 |
| MRGL-315~630 | 270 | 240 | 135 |
| 规格 | 底脚尺寸 | |
| K1 | L1 | |
| MRGL-125~160 | 95 | 7 |
| MRGL-200~250 | 115 | 9 |
| MRGL-315~630 | 180 | 11 |
| 规格 | 外形与安装尺寸 | ||||||||||||||
| B | C | D | D1 | G | J | N | P | R | S | T | U | ΦX | F | H | |
| MRGL-125/3JH | 135 | 17 | 27 | 92 | 85 | 120 | 85 | 36 | 20 | 25 | 3.5 | 115 | 9 | 59 | 10 |
| MRGL-125/4JH | 135 | 17 | 27 | 92 | 85 | 150 | 85 | 36 | 20 | 25 | 3.5 | 115 | 9 | 59 | 10 |
| MRGL-160/3JH | 135 | 17 | 27 | 92 | 85 | 120 | 85 | 36 | 20 | 25 | 3.5 | 115 | 9 | 59 | 10 |
| MRGL-160/4JH | 135 | 17 | 27 | 92 | 85 | 150 | 85 | 36 | 20 | 25 | 3.5 | 115 | 9 | 59 | 10 |
| MRGL-200/3JH | 170 | 18 | 35 | 98 | 110 | 160 | 115 | 50 | 25 | 30 | 3.5 | 140 | 11 | 76 | 15 |
| MRGL-200/4JH | 170 | 18 | 35 | 98 | 110 | 210 | 115 | 50 | 25 | 30 | 3.5 | 140 | 11 | 76 | 15 |
| MRGL-250/3JH | 170 | 18 | 35 | 98 | 110 | 160 | 115 | 50 | 25 | 30 | 3.5 | 140 | 11 | 76 | 15 |
| MRGL-250/4JH | 170 | 18 | 35 | 98 | 110 | 210 | 115 | 50 | 25 | 30 | 3.5 | 140 | 11 | 76 | 15 |
| MRGL-315/3JH | 240 | 20 | 50 | 135 | 160 | 210 | 145 | 65 | 32 | 40 | 5 | 206 | 11 | 94 | 20 |
| MRGL-315/4 | 240 | 20 | 50 | 135 | 160 | 270 | 145 | 65 | 32 | 40 | 5 | 206 | 11 | 94 | 20 |
| MRGL-400/3JH | 240 | 20 | 50 | 135 | 160 | 210 | 145 | 65 | 32 | 40 | 5 | 206 | 11 | 94 | 20 |
| MRGL-400/4JH | 240 | 20 | 50 | 135 | 160 | 270 | 145 | 65 | 32 | 40 | 5 | 206 | 11 | 94 | 20 |
| MRGL-500/3JH | 260 | 20 | 50 | 135 | 160 | 210 | 145 | 65 | 40 | 50 | 5 | 220 | 13 | 94 | 20 |
| MRGL-500/4JH | 260 | 20 | 50 | 135 | 160 | 270 | 145 | 65 | 40 | 50 | 5 | 220 | 13 | 94 | 20 |
| MRGL-630/3JH | 260 | 20 | 50 | 135 | 160 | 210 | 145 | 65 | 40 | 50 | 5 | 220 | 13 | 94 | 20 |
| MRGL-630/3JH | 260 | 20 | 50 | 135 | 160 | 270 | 145 | 65 | 40 | 50 | 5 | 220 | 13 | 94 | 20 |
